HTTP, récapitulatif

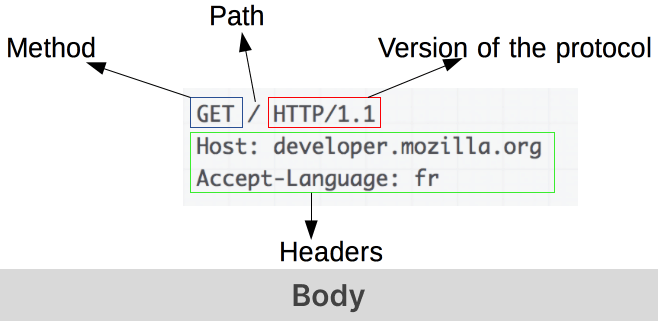

Requête

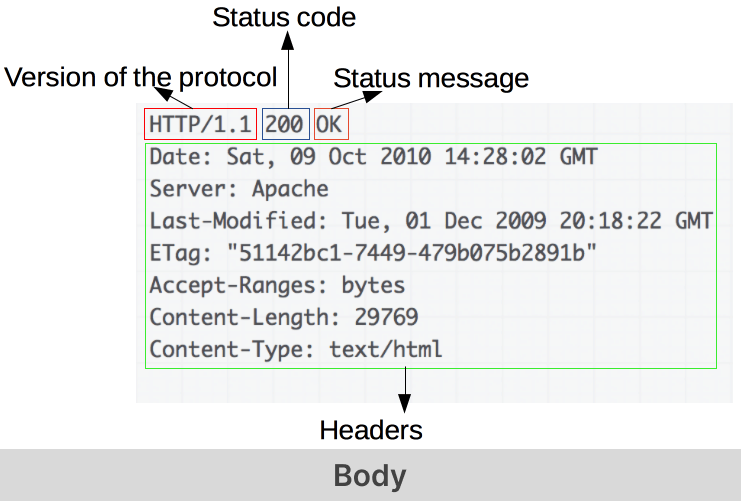

Réponse

/products
/products?brand=keychron&sort=price-asc
/products/B09NLTWKGP


/semesters
/semesters/A2020
/semesters/A2020/courses
/semesters/A2020/courses/420-0Q7-SW
/semesters/A2020/courses/420-0Q7-SW/groups
/semesters/A2020/courses/420-0Q7-SW/groups/2


/orders/202201012314
/orders/202201012314/invoice

GET /conversations

GET /conversations/9812
GET /conversations/9812/messages

POST /conversations/9812/messages
{ "text": ... }

PATCH /messages/987123654
{ "text" : ... }

PATCH /messages/987123654
{ "reaction" : ... }

DELETE /messages/456192837

Content-Length: 742

Content-Type: application/json
Content-Type: text/html

Content-Disposition: attachment; filename="cat.jpg"

Accept: */*
Accept: image/*
Accept: text/html

# BUCKET LISTS
GET /lists

POST /list-add
voyages

POST /list-edit
voyages
destinations

POST /list-delete
nourriture

# ITEMS D'UNE LISTE
GET /lists-items?list=...
GET /lists-items
destinations

POST /lists-items?list=...
nouvel item
POST /lists-items
destinations=allemagne

POST /list-items-delete
_ITEM ID_

# BUCKET LISTS
GET /lists

POST /lists
{ name: _NAME_ }

PATCH /lists/_NAME_
{ name: _NEW NAME_ }

DELETE /lists/_NAME_

# ITEMS D'UNE LISTE
GET /lists/_LIST NAME_/items
? GET /lists/items?list=_LIST NAME_

POST /lists/_NAME_/items
{ item: ... }
? POST /lists/items?list=_LIST NAME_
{ item: ... }

DELETE /lists/_NAME_/items/_ID_
DELETE /items/_ID_

Démo

Serveur

require "bundler/inline"

gemfile do
    source "http://rubygems.org"
    gem "sinatra-contrib"
    gem "webrick"
end

require 'sinatra'
require 'sinatra/reloader' if development?

#
# VERBE
#

get "/" do
  return "Bonjour à tous!"
end

# Une route est identifiee par le VERBE + CHEMIN
# GET / est different de DELETE /
delete "/" do
  return "Ceci est une action DELETE"
end

#
# Parametre de chemin
#
get "/greetings/admin" do
  return "Bonjour cher admin!"
end

# ATTENTION, l'ordre de declaration des routes est important
# /greetings/admin
# /greetings/james
get "/greetings/:name" do
  # On peut preciser un parametre dans le chemin

  return "Bonjour à #{params["name"]}!"
end

#
# Réponse: Status et Headers
#

# An Array with three elements: [status (Integer), headers (Hash), response body (responds to #each)]
# An Array with two elements: [status (Integer), response body (responds to #each)]
# An object that responds to #each and passes nothing but strings to the given block
# A Integer representing the status code

get "/status" do
  return 204
end

get "/status/body" do
  return [200, "Code 200, Tout est OK!"]
end

get "/status/body/headers" do
  data = { name: "James Hoffman", title: "Enseignant", age: 42 }
  headers = {
    "Content-Type"=> "application/json"
  }

  return [
    200,
    headers,
    data.to_json
  ]
end

#
# Requête: Headers
#

post "/headers" do
  # Les headers sont formatés selon les règles suivantes
  # - Nom en MAJUSCULE
  # - Les tirets - deviennent des barres de soulignement _
  # - Préfix HTTP_
  # Exemple:
  #    Accept devient HTTP_ACCEPT
  #    User-Agent devient HTTP_USER_AGENT
  #
  # EXCEPTIONS
  #    CONTENT_LENGTH, CONTENT_TYPE

  # Les données complémentaires de la requête
  # sont disponible dans le Hash request.env
  # Plusieurs helpers simplifient l'accès
  # https://www.rubydoc.info/github/rack/rack/Rack/Request/Helpers
  return [
    request.content_type,

    request.user_agent,

    request.accept?("application/json").to_s,

    request.has_header?("CONTENT_TYPE").to_s,
    request.get_header("CONTENT_TYPE"),

    request.get_header("HTTP_MY_HEADER"),

    request.env.to_s,
    request.env["HTTP_MY_HEADER"]
  ].join("\n\n\n\n")
end

Client

require "bundler/inline"

gemfile do
    source "http://rubygems.org"
    gem "faraday"
end

require "faraday"


server = Faraday.new(url: "http://localhost:4567")

def show(response)
  puts(response.status)
  puts("---")
  puts(response.headers)
  puts("---")
  puts(response.body)
  puts("\n\n")
end

show(server.get("/"))

show(server.delete("/"))

show(server.get("/greetings/admin"))

show(server.get("/greetings/james"))

show(server.get("/status"))

show(server.get("/status/body"))

show(server.get("/status/body/headers"))

headers = {
  "Content-Type" => "custom/james",
  "Accept" => "text/html",
  "My-Header" => "ahoy!"
}
show(server.post("/headers", nil, headers))

💻 Recipeasy

WWW-Authenticate: Basic realm="Zone restreinte!!!"

Authorization: Basic ZXRkOnNoYXdp

Démo Auth

Serveur Auth

require "bundler/inline"

gemfile do
    source "http://rubygems.org"
    gem "sinatra-contrib"
    gem "webrick"
end

require 'sinatra'
require 'sinatra/reloader' if development?

#
# Authentification
#
# https://sinatrarb.com/faq.html#auth

# Pour toutes les routes
# ATTENTION, il faut redémarrer le serveur après avoir
# activé l'authentification user Rack::Auth::Basic
# use Rack::Auth::Basic do |username, password|
#   # Le mecanisme de validation
#   # peut etre personnalisé, ex:
#   # fichier, BD, etc.
#   username == "admin" && password == "pwda"
# end
#
# get "/secret" do
#  "Hi!"
# end
#
# post "/also-secret" do
#  "Hi again!"
# end


# Authentification personnalisée, configurée par route
require "openssl"
SHA_KEY = "th3Superkey!" # Salt de hachage

# On ne veut pas enregistrer de mot de passe en clair
# le hachage sha256 permet d'empecher une fuite
# des mots de passe pouvant amener a une attaque subsequente si réutilisé
# https://dzone.com/articles/why-we-hash-passwords
def sha256(value)
  nil if value.nil? || value.empty?

  OpenSSL::HMAC.hexdigest("sha256", SHA_KEY, value)
end

def guard!
  auth_required = [
    401,
    {
      "WWW-Authenticate" => "Basic"
    },
    "Provide a username and password throught Basic HTTP authentication"
  ]

  # HALT interrompt IMMEDIATEMENT la requête et retourne le resultat
  halt auth_required unless authorized?
end

def authorized?
  auth ||=  Rack::Auth::Basic::Request.new(request.env)
  # request.env est disponible car on est dans le block HELPERS

  return unless auth.provided? && auth.basic? && auth.credentials

  username, password = auth.credentials # Structure est ["admin", "pwda"]

  if username == "admin" && sha256(password) == "71b0e3e2c9d25193a93bf31beaed7c3cf08d2d39a37e52f79366af1b7f6bf9d6" # sha256("pwda")
    @user = username
  end
end

get "/public" do
  "Hey folks!"
end

get "/private" do
  guard! # Applique l'authentification pour cette route

  "Ahoy #{@user}"
end

Client Auth

require "bundler/inline"

gemfile do
    source "http://rubygems.org"
    gem "faraday"
end

require "faraday"

server = Faraday.new(url: "http://localhost:4567")

def show(response)
  puts(response.status)
  puts("---")
  puts(response.headers)
  puts("---")
  puts(response.body)
  puts("\n\n")
end

show(server.get("/public"))

show(server.get("/private"))

# Auth manuelle
require "base64"
show(server.get("/private", nil, {"Authorization" => "Basic #{Base64.encode64("admin:pwda")}"}))

# Helper sur la connexion
# ATTENTION, tant que la connexion existe,
# les infos sont utilisées

server.set_basic_auth("admin", "pwda")
show( server.get("/private"))

# On peut egalement configurer l'authentification
# a la creation de la connexion https://lostisland.github.io/faraday/#/middleware/included/authentication

💻 Recipeasy, suite
